Tensor Quaternion Module

Pytorch Models for Sequential Data

Quaternion Type

---

source

TensorQuaternionAngle

 TensorQuaternionAngle (x, **kwargs)

A Tensor which support subclass pickling, and maintains metadata when casting or after methods

---

source

TensorQuaternionInclination

 TensorQuaternionInclination (x, **kwargs)

A Tensor which support subclass pickling, and maintains metadata when casting or after methods

from nbdev.config import get_config

project_root = get_config().config_file.parent
f_path = project_root / 'test_data/orientation'

hdf_files = get_hdf_files(f_path)
tfm_src = CreateDict([DfHDFCreateWindows(win_sz=1000,stp_sz=100,clm='acc_x')])
u = ['acc_x','acc_y','acc_z','gyr_x','gyr_y','gyr_z']
# u = ['acc_x','acc_y','acc_z','gyr_x','gyr_y','gyr_z','mag_x','mag_y','mag_z']
y =['opt_a','opt_b','opt_c','opt_d']
dls = DataBlock(blocks=(SequenceBlock.from_hdf(u,TensorSequencesInput),
                        SequenceBlock.from_hdf(y,TensorQuaternionInclination)),
                get_items=tfm_src,
                splitter=RandomSplitter(0.1)
               ).dataloaders(hdf_files,shufflish=True,bs=128)

Basic Operations

tq1 = tensor([
    [1,0,0,0],
    [0.5,0.5,0.5,0.5],
    ])
tq2 = tensor([
    [0.5,0.5,0.5,0.5],
    [0.5,0.5,0.5,0.5],
    ])
tq1.shape

torch.Size([2, 4])

---

source

rad2deg

 rad2deg (t)

test_eq(float(rad2deg(_pi)),180)

---

ScriptFunction object at 0x7f83233af100>

quat1quat2*

# q = tq1.repeat(1000,1)

# %%timeit
# torch.cumprod(q,dim=-1)

# %%timeit
# [q*q for _ in range(1000)]

test_eq(multiplyQuat(tq1,tq2),tensor([[ 0.5000,  0.5000,  0.5000,  0.5000],
                                    [-0.5000,  0.5000,  0.5000,  0.5000]]))

---

source

norm_quaternion

 norm_quaternion (q)

test_eq(norm_quaternion(tq1*5),tq1)
test_eq(norm_quaternion(tq1/_pi),tq1)
test_eq(norm_quaternion(tq1[None,...]),tq1[None,...])

---

source

conjQuat

 conjQuat (q)

test_eq(conjQuat(tq1),tensor([[ 1.0000, -0.0000, -0.0000, -0.0000],
                             [ 0.5000, -0.5000, -0.5000, -0.5000]]))

---

ScriptFunction object at 0x7f83234a8220>

quat1inv(quat2)*

---

source

diffQuat

 diffQuat (q1, q2, norm=True)

test_eq(diffQuat(tq1,tq2),diffQuat(tq1,tq2*5))
test_ne(diffQuat(tq1,tq2),diffQuat(tq1,tq2*5,norm=False))
test_ne(diffQuat(tq1,tq2),diffQuat(tq1[None,...],tq2[None,...]))

---

source

safe_acos

 safe_acos (t, eps=4e-08)

numericaly stable variant of arcuscosine

test_ne(safe_acos(tensor(1.))*1e6,0)
test_eq(safe_acos(tensor(-0.)),_pi/2)

---

source

safe_acos_double

 safe_acos_double (t, eps=1e-16)

numericaly stable variant of arcuscosine, uses 64bit floats for internal computation for increased accuracy and gradient propagation

test_ne(safe_acos_double(tensor(1.))*1e6,0)
test_eq(safe_acos_double(tensor(-0.)),_pi/2)

---

source

relativeAngle

 relativeAngle (q1, q2)

---

source

inclinationAngle

 inclinationAngle (q1, q2)

print('inclination:', rad2deg(inclinationAngle(tq1,tq2)))
print('relative:', rad2deg(relativeAngle(tq1,tq2)))

inclination: tensor([9.0000e+01, 1.7075e-06])
relative: tensor([1.2000e+02, 1.7075e-06])

---

source

pitchAngle

 pitchAngle (q1, q2)

---

source

rollAngle

 rollAngle (q1, q2)

print('roll:', rad2deg(rollAngle(tq1,tq2)))
print('pitch:', rad2deg(pitchAngle(tq1,tq2)))

roll: tensor([0., 0.])
pitch: tensor([-90.,   0.])

---

source

inclinationAngleAbs

 inclinationAngleAbs (q)

rad2deg(inclinationAngleAbs(tq1))

tensor([ 0., 90.])

---

source

rand_quat

 rand_quat ()

---

source

rot_vec

 rot_vec (v, q)

g = tensor([[9.81,0,0]]*5)

r_quat = rand_quat()
rot_vec(g,r_quat)

tensor([[ 1.3754,  7.8102, -5.7746],
        [ 1.3754,  7.8102, -5.7746],
        [ 1.3754,  7.8102, -5.7746],
        [ 1.3754,  7.8102, -5.7746],
        [ 1.3754,  7.8102, -5.7746]])

---

source

quatFromAngleAxis

 quatFromAngleAxis (angle, axis)

---

source

quatInterp

 quatInterp (quat, ind, extend=False)

*Interpolates an array of quaternions of (non-integer) indices using Slerp. Sampling indices are in the range 0..N-1, for values outside of this range, depending on “extend”, the first/last element or NaN is returned.

See also csg_bigdata.dp.utils.vecInterp.

:param quat: array of input quaternions (N(xB)x4) :param ind: vector containing the sampling indices, shape (M,) :param extend: if true, the input data is virtually extended by the first/last value :return: interpolated quaternions (Mx4)*

1e-3/_pi*180

tensor([0.0573])

q = torch.rand((1000000,1,4))*2-1
q /= q.norm()
x = torch.linspace(0,q.shape[0]-1,150001)
q_i = quatInterp(q,x)
torch.isnan(inclinationAngleAbs(q_i)).sum()

tensor(0)

q_i = quatInterp(q,x)

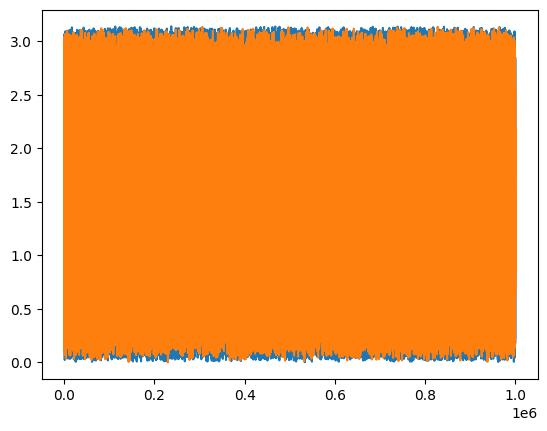

plt.figure()
plt.plot(inclinationAngleAbs(q))
plt.plot(x,inclinationAngleAbs(q_i))

Loss Functions

---

source

inclination_loss

 inclination_loss (q1, q2)

inclination_loss(tq1,tq2)

tensor(0.2071)

---

source

inclination_loss_abs

 inclination_loss_abs (q1, q2)

inclination_loss_abs(tq1,tq2)

tensor(0.1464)

---

source

inclination_loss_squared

 inclination_loss_squared (q1, q2)

# %%timeit
inclination_loss_squared(tq1,tq2)

tensor(0.0429)

---

source

inclination_loss_smooth

 inclination_loss_smooth (q1, q2)

# %%timeit
inclination_loss_smooth(tq1,tq2)

tensor(0.0214)

---

source

abs_inclination

 abs_inclination (q1, q2)

abs_inclination(tq1,tq2)

tensor(0.7854)

---

source

ms_inclination

 ms_inclination (q1, q2)

ms_inclination(tq1,tq2)

tensor(1.2337)

---

source

rms_inclination

 rms_inclination (q1, q2)

rms_inclination(tq1,tq2)

tensor(1.1107)

---

source

smooth_inclination

 smooth_inclination (q1, q2)

smooth_inclination(tq1,tq2)

tensor(0.5354)

---

source

rms_inclination_deg

 rms_inclination_deg (q1, q2)

rms_inclination_deg(tq1,tq2)

tensor([63.6396])

---

source

rms_pitch_deg

 rms_pitch_deg (q1, q2)

rms_pitch_deg(tq1,tq2)

tensor([63.6396])

---

source

rms_roll_deg

 rms_roll_deg (q1, q2)

rms_roll_deg(tq1,tq2)

tensor([0.])

---

source

mean_inclination_deg

 mean_inclination_deg (q1, q2)

mean_inclination_deg(tq1,tq2)

tensor([45.])

---

source

angle_loss

 angle_loss (q1, q2)

---

source

angle_loss_opt

 angle_loss_opt (q1, q2)

---

source

ms_rel_angle

 ms_rel_angle (q1, q2)

ms_rel_angle(tq1,tq2)

tensor(2.1932)

---

source

abs_rel_angle

 abs_rel_angle (q1, q2)

---

source

rms_rel_angle_deg

 rms_rel_angle_deg (q1, q2)

rms_rel_angle_deg(tq1,tq2)

tensor([84.8528])

---

source

mean_rel_angle_deg

 mean_rel_angle_deg (q1, q2)

mean_rel_angle_deg(tq1,tq2)

tensor([60.])

---

source

deg_rmse

 deg_rmse (inp, targ)

Callbacks

In order to assure that the output of the model are close to unit quaternions the distance will be added to the loss

---

source

QuaternionRegularizer

 QuaternionRegularizer (reg_unit=0.0, detach=False, modules=None,
                        every=None, remove_end=True, is_forward=True,
                        cpu=True, include_paramless=False, hook=None)

Callback that adds AR and TAR to the loss, calculated by output of provided layer

---

source

augmentation_groups

 augmentation_groups (u_groups)

returns the rotation list corresponding to the input groups

u_raw_groups = [3,3]
test_eq(augmentation_groups(u_raw_groups),[[0,2],[3,5]])

---

source

QuaternionAugmentation

 QuaternionAugmentation (inp_groups, **kwargs)

A transform that before_call its state at each __call__

n_skip = 2**8


inp,out = get_inp_out_size(dls)
# model = SimpleGRU(inp,out,num_layers=1,hidden_size=100)
model = TCN(inp,out,hl_depth=8,hl_width=10)

skip = partial(SkipNLoss,n_skip=n_skip)
metrics=rms_inclination_deg
cbs = [QuaternionRegularizer(reg_unit=1,modules=[model])]

lrn = Learner(dls,model,loss_func=ms_inclination,opt_func=ranger,metrics=metrics)

/opt/homebrew/Caskroom/miniforge/base/envs/env_tsfast/lib/python3.10/site-packages/torch/nn/utils/weight_norm.py:143: FutureWarning: `torch.nn.utils.weight_norm` is deprecated in favor of `torch.nn.utils.parametrizations.weight_norm`.
  WeightNorm.apply(module, name, dim)

lrn.fit_one_cycle(1,lr_max=3e-3)

epoch	train_loss	valid_loss	rms_inclination_deg	time
0	2.289876	1.290059	65.076988	00:01

/var/folders/pc/13zbh_m514n1tp522cx9npt00000gn/T/ipykernel_31206/3976315585.py:9: UserWarning: Float64 precision not supported on mps:0 device. Falling back to float32. This may reduce numerical accuracy of quaternion operations. Error: Cannot convert a MPS Tensor to float64 dtype as the MPS framework doesn't support float64. Please use float32 instead.
  warnings.warn(f"Float64 precision not supported on {t.device} device. Falling back to float32. This may reduce numerical accuracy of quaternion operations. Error: {e}")

Resampling Model

---

source

Quaternion_ResamplingModel

 Quaternion_ResamplingModel (model, fs_targ, fs_mean=0, fs_std=1,
                             quaternion_sampling=True)

*Module that resamples the signal before and after the prediction of its model. Usefull for using models on datasets with different samplingrates.

sampling_method: method used for resampling [‘resample’,‘interpolate’]*

# dls = DataBlock(blocks=(SequenceBlock.from_hdf(u + ['dt'],TensorSequencesInput),
#                         SequenceBlock.from_hdf(y,TensorQuaternionInclination)),
#                 get_items=tfm_src,
#                 splitter=ApplyToDict(FuncSplitter(lambda o: 'experiment2' in str(o)))
#                ).dataloaders(hdf_files,shufflish=True,bs=128)
# model = TCN(inp,out,hl_depth=8,hl_width=10)
# Learner(dls,Quaternion_ResamplingModel(model,10,quaternion_sampling=False),loss_func=ms_inclination).fit(1)

Quaternion Datablock

---

source

HDF2Quaternion

 HDF2Quaternion (clm_names, clm_shift=None, truncate_sz=None,
                 to_cls=<function noop>, cached=True, fs_idx=None,
                 dt_idx=None, fast_resample=True)

Delegates (__call__,decode,setup) to (encodes,decodes,setups) if split_idx matches

---

source

QuaternionBlock

 QuaternionBlock (seq_extract, padding=False)

A basic wrapper that links defaults transforms for the data block API

tfm_src = CreateDict([DfResamplingFactor(2000/7,np.linspace(50,500,10)),DfHDFCreateWindows(win_sz=1000,stp_sz=100,clm='acc_x')])
dls = DataBlock(blocks=(SequenceBlock.from_hdf(u,TensorSequencesInput),
                        QuaternionBlock.from_hdf(y)),
                get_items=tfm_src,
                splitter=RandomSplitter(0.5)
               ).dataloaders(hdf_files,bs=2)

#test_eq(len(dls.items),83877)

Inclination Datablock

---

source

TensorInclination

 TensorInclination (x, **kwargs)

A Tensor which support subclass pickling, and maintains metadata when casting or after methods

---

source

HDF2Inclination

 HDF2Inclination (clm_names, clm_shift=None, truncate_sz=None,
                  to_cls=<function noop>, cached=True, fs_idx=None,
                  dt_idx=None, fast_resample=True)

Delegates (__call__,decode,setup) to (encodes,decodes,setups) if split_idx matches

---

source

InclinationBlock

 InclinationBlock (seq_extract, padding=False)

A basic wrapper that links defaults transforms for the data block API

# f_paths = '/mnt/Data/Systemidentification/Orientation_Estimation/'
# hdf_files = get_hdf_files(f_paths)
# tfm_src = CreateDict([DfHDFCreateWindows(win_sz=1000,stp_sz=100,clm='acc_x')])
# u = ['acc_x','acc_y','acc_z','gyr_x','gyr_y','gyr_z']
# # u = ['acc_x','acc_y','acc_z','gyr_x','gyr_y','gyr_z','mag_x','mag_y','mag_z']
# y =['opt_a','opt_b','opt_c','opt_d']
# dls = DataBlock(blocks=(SequenceBlock.from_hdf(u),
#                         InclinationBlock.from_hdf(y)),
#                 get_items=tfm_src,
#                 splitter=ApplyToDict(FuncSplitter(lambda o: 'experiment2' in str(o)))
#                ).dataloaders(hdf_files,shufflish=True,bs=128)

Show Results

---

source

plot_scalar_inclination

 plot_scalar_inclination (axs, in_sig, targ_sig, out_sig=None, **kwargs)

---

source

plot_quaternion_inclination

 plot_quaternion_inclination (axs, in_sig, targ_sig, out_sig=None,
                              **kwargs)

---

source

plot_quaternion_rel_angle

 plot_quaternion_rel_angle (axs, in_sig, targ_sig, out_sig=None, **kwargs)

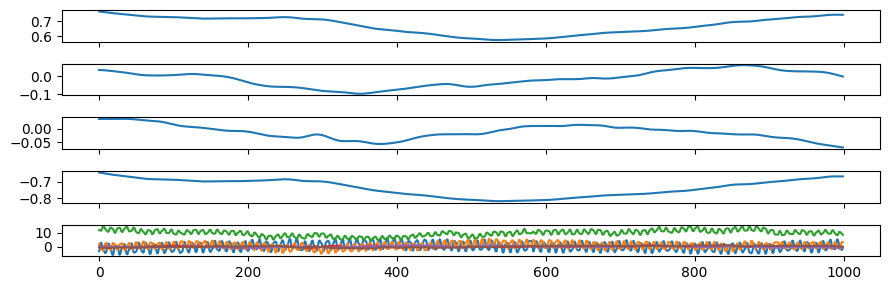

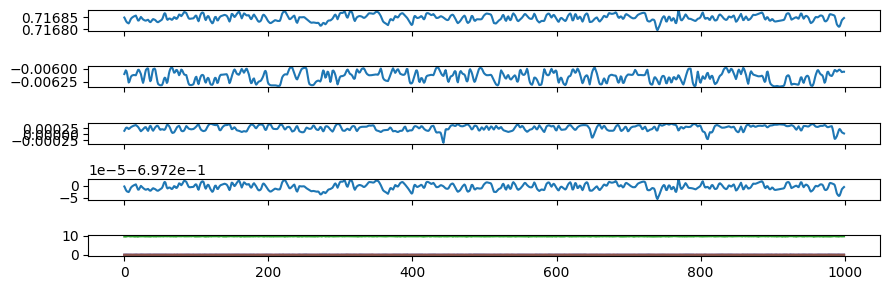

dls.show_batch(max_n=3,ds_idx=0)

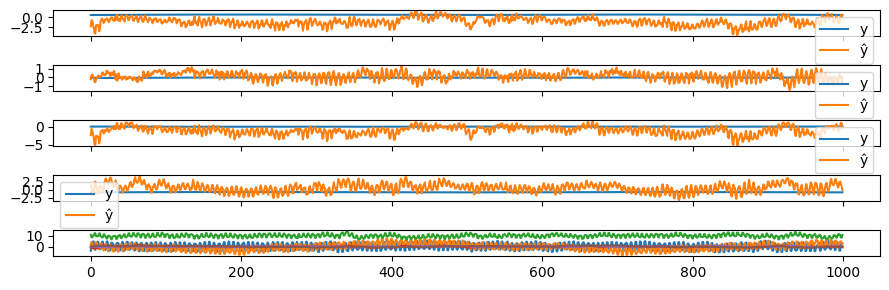

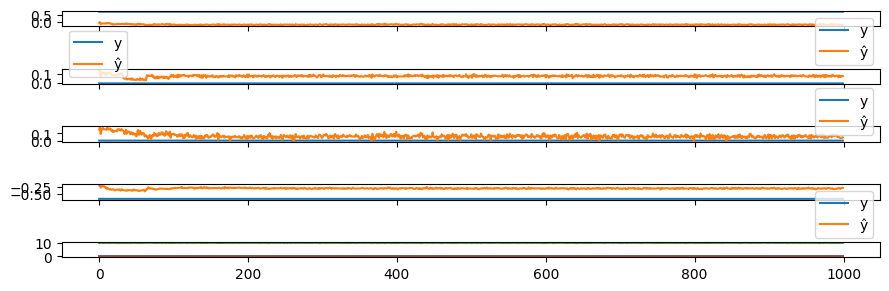

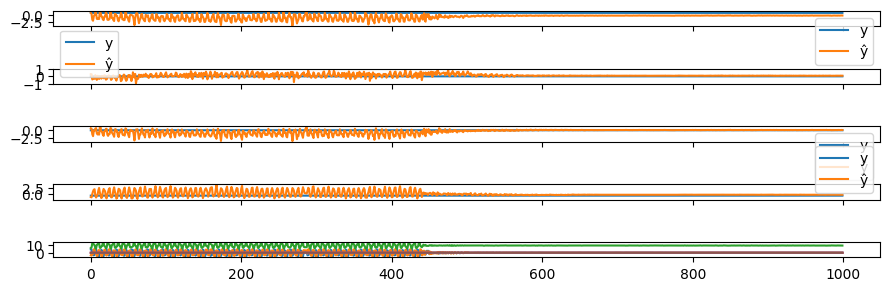

lrn.show_results(max_n=3,ds_idx=0,shuffle=True,quat=True)

/var/folders/pc/13zbh_m514n1tp522cx9npt00000gn/T/ipykernel_31206/3976315585.py:9: UserWarning: Float64 precision not supported on mps:0 device. Falling back to float32. This may reduce numerical accuracy of quaternion operations. Error: Cannot convert a MPS Tensor to float64 dtype as the MPS framework doesn't support float64. Please use float32 instead.
  warnings.warn(f"Float64 precision not supported on {t.device} device. Falling back to float32. This may reduce numerical accuracy of quaternion operations. Error: {e}")
