Truncated Backpropagation Through Time

Custom Dataloaders

Pytorch Modules for Training Models for sequential data

The tbptt dataloader needs to split the minibatches that are created in several smaller minibatches that will be returned sequentially before the next minibatch may be created.

---

source

TbpttDl

 TbpttDl (dataset, sub_seq_len=None, seq_len=None, shuffle=True,
          num_workers=2, bs:int=64, verbose:bool=False,
          do_setup:bool=True, pin_memory=False, timeout=0,
          batch_size=None, drop_last=False, indexed=None, n=None,
          device=None, persistent_workers=False, pin_memory_device='',
          wif=None, before_iter=None, after_item=None, before_batch=None,
          after_batch=None, after_iter=None, create_batches=None,
          create_item=None, create_batch=None, retain=None, get_idxs=None,
          sample=None, shuffle_fn=None, do_batch=None)

Transformed DataLoader

from nbdev.config import get_config

project_root = get_config().config_file.parent
f_path = project_root / 'test_data/WienerHammerstein'

tfm_lst = [DfHDFCreateWindows(win_sz=1000+1,stp_sz=1000,clm='u')]
seq = DataBlock(blocks=(SequenceBlock.from_hdf(['u','y'],TensorSequencesInput,clm_shift=[-1,-1]),
                        SequenceBlock.from_hdf(['y'],TensorSequencesOutput,clm_shift=[1])),
                 get_items=CreateDict(tfm_lst),
                 splitter=ApplyToDict(ParentSplitter()))
db = seq.dataloaders(get_hdf_files(f_path),dl_type=TbpttDl,sub_seq_len=99,num_workers=6)

/var/folders/pc/13zbh_m514n1tp522cx9npt00000gn/T/ipykernel_57530/2691761175.py:21: UserWarning: Sequence length (1000) is not perfectly divisible by sub_seq_len (99). The last segment of each sequence in TbpttDl will be shorter.
  warnings.warn(

db = seq.dataloaders(get_hdf_files(f_path),dl_type=TbpttDl,sub_seq_len=100,num_workers=6)

example_sequence = [array(x[-1][0,:,0].cpu()) for x in db.train]

/var/folders/pc/13zbh_m514n1tp522cx9npt00000gn/T/ipykernel_57530/587544570.py:1: DeprecationWarning: __array__ implementation doesn't accept a copy keyword, so passing copy=False failed. __array__ must implement 'dtype' and 'copy' keyword arguments. To learn more, see the migration guide https://numpy.org/devdocs/numpy_2_0_migration_guide.html#adapting-to-changes-in-the-copy-keyword
  example_sequence = [array(x[-1][0,:,0].cpu()) for x in db.train]

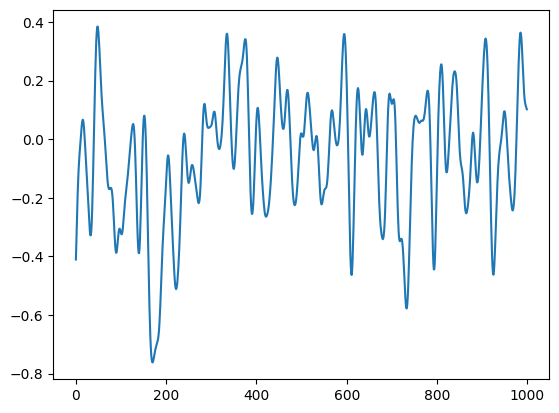

plt.figure()
plt.plot(np.concatenate(example_sequence))

num_workers can be > 1 with the new synchronization procedure

TBPTT_Reset_Callback

The stateful model needs to reset its hidden state, when a new sequence begins. The callback reads the reset flag and acts accordingly.

---

source

reset_model_state

 reset_model_state (model)

---

source

TbpttResetCB

 TbpttResetCB (after_create=None, before_fit=None, before_epoch=None,
               before_train=None, before_batch=None, after_pred=None,
               after_loss=None, before_backward=None,
               after_cancel_backward=None, after_backward=None,
               before_step=None, after_cancel_step=None, after_step=None,
               after_cancel_batch=None, after_batch=None,
               after_cancel_train=None, after_train=None,
               before_validate=None, after_cancel_validate=None,
               after_validate=None, after_cancel_epoch=None,
               after_epoch=None, after_cancel_fit=None, after_fit=None)

Callback resets the rnn model with every new sequence for tbptt, calls reset_state in every module of the model

Example

from tsfast.learner import RNNLearner,SkipNLoss,fun_rmse

lrn = RNNLearner(db,num_layers=1,rnn_type='gru',stateful=False,metrics=[SkipNLoss(fun_rmse,1),fun_rmse])
lrn.add_cb(TbpttResetCB())

<fastai.learner.Learner>

lrn.fit_one_cycle(1,lr_max=3e-2)

epoch	train_loss	valid_loss	fun_rmse	fun_rmse	time
0	0.092029	0.032849	0.041365	0.041402	00:01

db.train.sub_seq_len = 10

lrn.fit_one_cycle(1,lr_max=3e-2)

epoch	train_loss	valid_loss	fun_rmse	fun_rmse	time
0	0.016088	0.009301	0.012578	0.013134	00:01

Weighted Sampling Dataloader

A weighted sampling dataloader for nonuniforly distributed data. A factory method receives the base Dataloader class and returns the inherited weighted sampling dataloader class

---

source

WeightedDL_Factory

 WeightedDL_Factory (cls)

Weighted Dataloader that provides control over sampling probabilities. wgts: probability array with probability for every item gets extracted from the pandas ‘p_sample’ column if given. Otherwise uniform sampling will be enabled

dl = WeightedDL_Factory(TfmdDL)([1,2]*5,bs=10,wgts=[2,1]*5)

lrn = RNNLearner(db,num_layers=1,rnn_type='gru',stateful=False,metrics=[SkipNLoss(fun_rmse,1),fun_rmse])
lrn.fit_one_cycle(1,lr_max=3e-2)

0.00% [0/1 00:00<?]

epoch	train_loss	valid_loss	fun_rmse	fun_rmse	time

4.00% [4/100 00:00<00:01 0.2294]

dl.wgts

array([0.13333333, 0.06666667, 0.13333333, 0.06666667, 0.13333333,
       0.06666667, 0.13333333, 0.06666667, 0.13333333, 0.06666667])

dl.one_batch()

tensor([1, 2, 1, 2, 1, 2, 1, 2, 1, 2])

ItemLst Transform for weight calculation

---

source

uniform_p_of_category

 uniform_p_of_category (cat_name)

Scales sampling weights for an even distribution between every category

---

source

uniform_p_of_float

 uniform_p_of_float (var_name, bins=10)

Scales sampling weights for an even distribution of the continous variable by creating equi sized bins

---

source

uniform_p_of_float_with_gaps

 uniform_p_of_float_with_gaps (var_name, bins=100)

Scales sampling weights for an even distribution of the continous variable by creating equi sized bins

def train_valid(df):
    ''' test function that extracts valid and train from the path string'''
    df['train'] = df.path.astype(str).str.contains('train',regex=False)
    return df

# %%time
tfm_lst = [train_valid, DfHDFCreateWindows(win_sz=1000+1,stp_sz=1000,clm='u') ,uniform_p_of_category('train'),uniform_p_of_float('l_slc'),uniform_p_of_float_with_gaps('r_slc')]
apply_df_tfms(get_hdf_files(f_path),tfm_lst)

	path	train	l_slc	r_slc	p_sample
0	/Users/daniel/Development/tsfast/test_data/WienerHammerstein/valid/WienerHammerstein_valid.hdf5	False	0	1001	0.001219
0	/Users/daniel/Development/tsfast/test_data/WienerHammerstein/valid/WienerHammerstein_valid.hdf5	False	1000	2001	0.001219
0	/Users/daniel/Development/tsfast/test_data/WienerHammerstein/valid/WienerHammerstein_valid.hdf5	False	2000	3001	0.001170
0	/Users/daniel/Development/tsfast/test_data/WienerHammerstein/valid/WienerHammerstein_valid.hdf5	False	3000	4001	0.002437
0	/Users/daniel/Development/tsfast/test_data/WienerHammerstein/valid/WienerHammerstein_valid.hdf5	False	4000	5001	0.002340
...	...	...	...	...	...
2	/Users/daniel/Development/tsfast/test_data/WienerHammerstein/train/WienerHammerstein_train.hdf5	True	74000	75001	0.007357
2	/Users/daniel/Development/tsfast/test_data/WienerHammerstein/train/WienerHammerstein_train.hdf5	True	75000	76001	0.007357
2	/Users/daniel/Development/tsfast/test_data/WienerHammerstein/train/WienerHammerstein_train.hdf5	True	76000	77001	0.007357
2	/Users/daniel/Development/tsfast/test_data/WienerHammerstein/train/WienerHammerstein_train.hdf5	True	77000	78001	0.006180
2	/Users/daniel/Development/tsfast/test_data/WienerHammerstein/train/WienerHammerstein_train.hdf5	True	78000	79001	0.011124

185 rows × 5 columns

seq = DataBlock(blocks=(SequenceBlock.from_hdf(['u','y'],TensorSequencesInput,clm_shift=[-1,-1]),
                        SequenceBlock.from_hdf(['y'],TensorSequencesOutput,clm_shift=[1])),
                 get_items=CreateDict(tfm_lst),
                 splitter=ApplyToDict(ParentSplitter()))
# db = seq.dataloaders(get_hdf_files('test_data/battery'),dl_type=TbpttDl,sub_seq_len=200)
db = seq.dataloaders(get_hdf_files(f_path),dl_type=WeightedDL_Factory(TbpttDl),sub_seq_len=500)

db.train.wgts.shape

(79,)

db.train.wgts[:5],db.valid.wgts[:5]

(array([0.0034722 , 0.0034722 , 0.00333331, 0.0069444 , 0.00666662]),
 array([0.03704676, 0.03704676, 0.03556485, 0.07409344, 0.0711297 ]))

lrn = RNNLearner(db,num_layers=1,rnn_type='gru',stateful=False,metrics=[SkipNLoss(fun_rmse,1),fun_rmse])
lrn.add_cb(TbpttResetCB())
lrn.fit_one_cycle(1,lr_max=3e-2)

epoch	train_loss	valid_loss	fun_rmse	fun_rmse	time
0	0.207963	0.084617	0.108266	0.108489	00:01

Importance Sampling Callback

# #| export
# class ImportanceSampling(Callback):
#     #modify the dataloader weights to sample items with higher loss more often
#     def __init__(self, filter_criterion=nn.HuberLoss(reduction='none')):
#         self.filter_criterion = filter_criterion
#         self.loss_list = None #store loss of each item in the dataloader

#     def begin_fit(self):
#         #empty the loss list at the beginning of each fit
#         self.loss_list = None

#     def after_pred(self):
#         # store loss of each item in the batch
#         if not self.training: return
#         losses = self.filter_criterion(self.learn.pred, *self.learn.yb)
#         if losses.ndim >= 2: losses = losses.mean(tuple(range(1,losses.ndim)))  # If loss is multi-dimensional, take the mean over all but the first dimension
#         #get the indices of each item in the batch from the dataloader
#         # import pdb; pdb.set_trace()

#         #if the loss_list is empty, initialize it with dataloader wgts
#         if self.loss_list is None:
#             self.loss_list = self.learn.dls.train.wgts.clone()
#             #scale the loss_list mean to the mean loss of the batch
#             self.loss_list *= self.loss_list.numel()/losses.mean()

#         #store the loss of each item in the loss_list

#     def after_epoch(self):
#         #modify the dataloader weights to sample items with higher loss more often
#         if not self.training: return
#         self.learn.dls.train.wgts = self.loss_list
#         self.learn.dls.train.wgts /= self.learn.dls.train.wgts.sum()

# lrn = RNNLearner(db,num_layers=1,stateful=False,metrics=[SkipNLoss(fun_rmse,1),fun_rmse],cbs=ImportanceSampling())
# lrn.fit(1)

# tfm_lst = [train_valid, DfHDFCreateWindows(win_sz=500+1,stp_sz=500,clm='u')]
# seq = DataBlock(blocks=(SequenceBlock.from_hdf(['u','y'],TensorSequencesInput,clm_shift=[-1,-1]),
#                         SequenceBlock.from_hdf(['y'],TensorSequencesOutput,clm_shift=[1])),
#                  get_items=CreateDict(tfm_lst),
#                  splitter=ApplyToDict(ParentSplitter()))
# # db = seq.dataloaders(get_hdf_files('test_data/battery'),dl_type=TbpttDl,sub_seq_len=200)
# db = seq.dataloaders(get_hdf_files('test_data/battery'),dl_type=WeightedDL_Factory(TfmdDL))

# RNNLearner(db,num_layers=1,stateful=False,metrics=[SkipNLoss(fun_rmse,1),fun_rmse],cbs=ImportanceSampling()).fit(1)

Mini Batch Limiter Dataloader

A weighted sampling dataloader for nonuniforly distributed data. A factory method receives the base Dataloader class and returns the inherited weighted sampling dataloader class

---

source

BatchLimit_Factory

 BatchLimit_Factory (cls)

Batch limited Dataloader that provides an upper limit for the number of mini batches per epoch max_batches: upper limit for minibatch count per epoch

dl = BatchLimit_Factory(TfmdDL)([1,2]*5,bs=2,max_batches=3,shuffle=False)

len(dl)

3

dl.get_idxs()

[0, 1, 2, 3, 4, 5]

BatchLimit_Factory(TfmdDL)([1,2]*5,bs=2,max_batches=3,shuffle=True).get_idxs()

[3, 2, 7, 0, 6, 9]

[x for x in dl]

[tensor([1, 2]), tensor([1, 2]), tensor([1, 2])]

len(dl)

3
